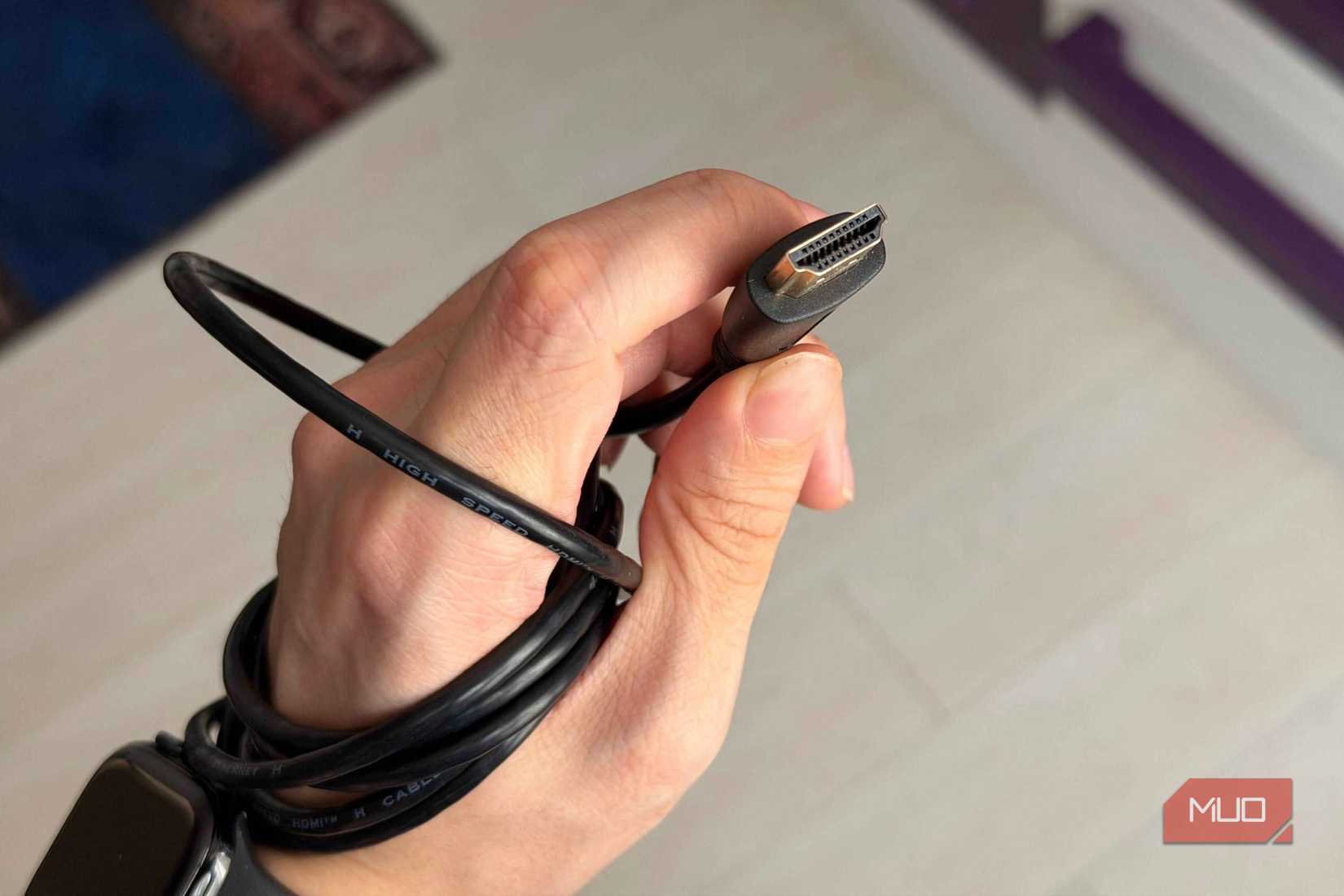

Most of us treat HDMI as the cable that sends video from a laptop, console, or streaming box to a screen, and for the most part, it is, but that’s only a fraction of the story. Tucked inside that single connector are several extra data channels that handle audio, remote control commands, network traffic, and even display configuration — all without a separate wire in sight.
If you’ve ever plugged in one HDMI cable and had your soundbar, TV, and streaming stick magically start working together, you’ve experienced this hidden functionality firsthand. That HDMI connector has way more features than just video baked in that you should be taking advantage of.
The pin that lets your TV talk back to your soundbar
1 Mbps for compressed audio, 37 Mbps for the lossless stuff

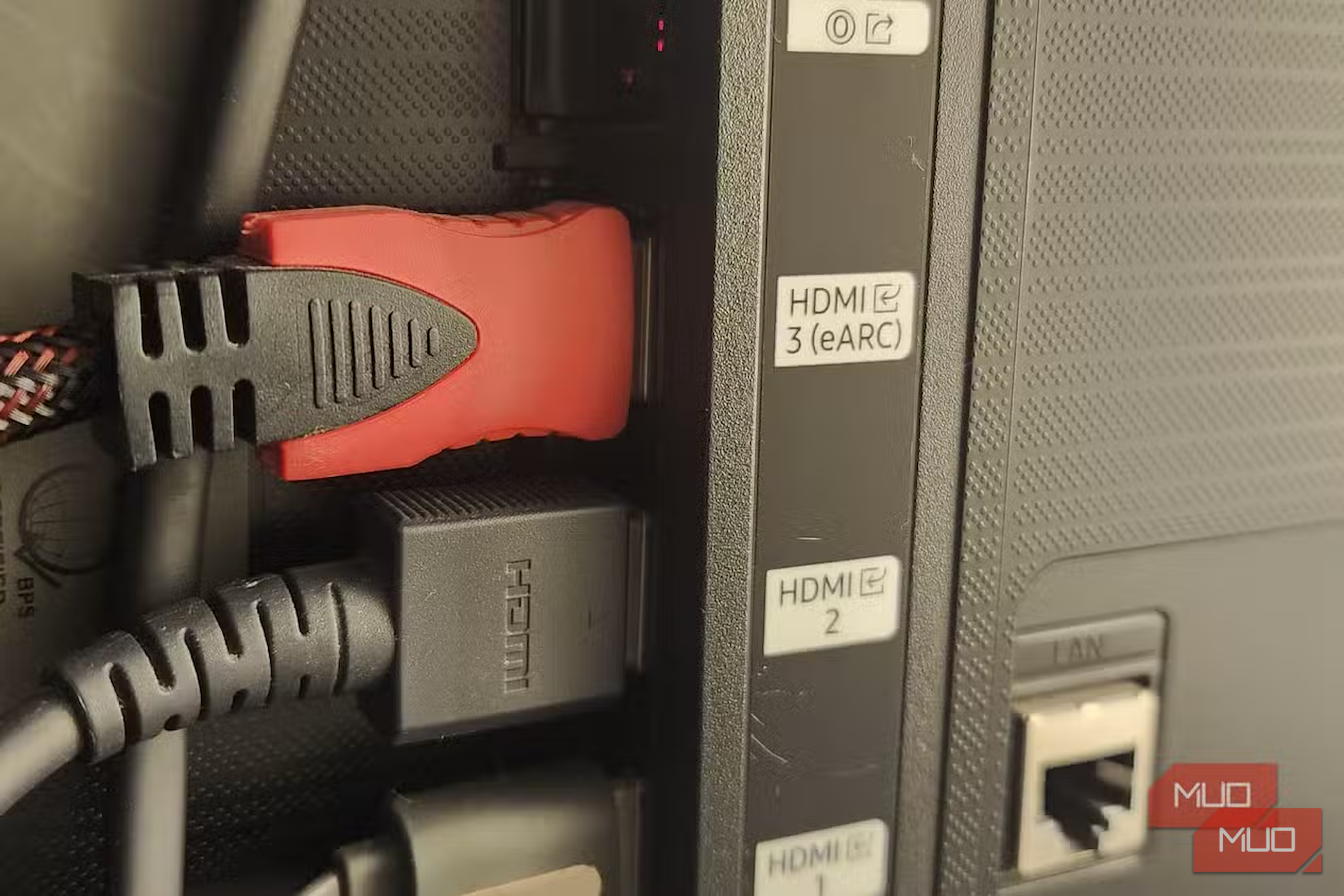

One of the most widely used hidden features of the HDMI connector is the Audio Return Channel, or ARC, introduced with HDMI 1.4 back in 2009. It flips the usual direction of travel, letting a TV send sound back down the same cable to a soundbar or AV receiver instead of requiring a separate optical cable.
The original ARC is limited to roughly 1 Mbps, which is enough for stereo audio and compressed surround formats like Dolby Digital and DTS, but not for lossless, high-resolution tracks. That’s where eARC comes in. Introduced with HDMI 2.1, eARC bumps that bandwidth up to 37 Mbps, giving you enough headroom for uncompressed 5.1 and 7.1 audio, in addition to lossless formats like Dolby TrueHD, DTS-HD Master Audio, and object-based Dolby Atmos. Both versions physically reuse a pin pair on the connector that was originally left reserved, repurposing it for this reverse audio path.
One remote, fifteen devices, one shared command bus
Every brand renames it, but it’s the same protocol underneath

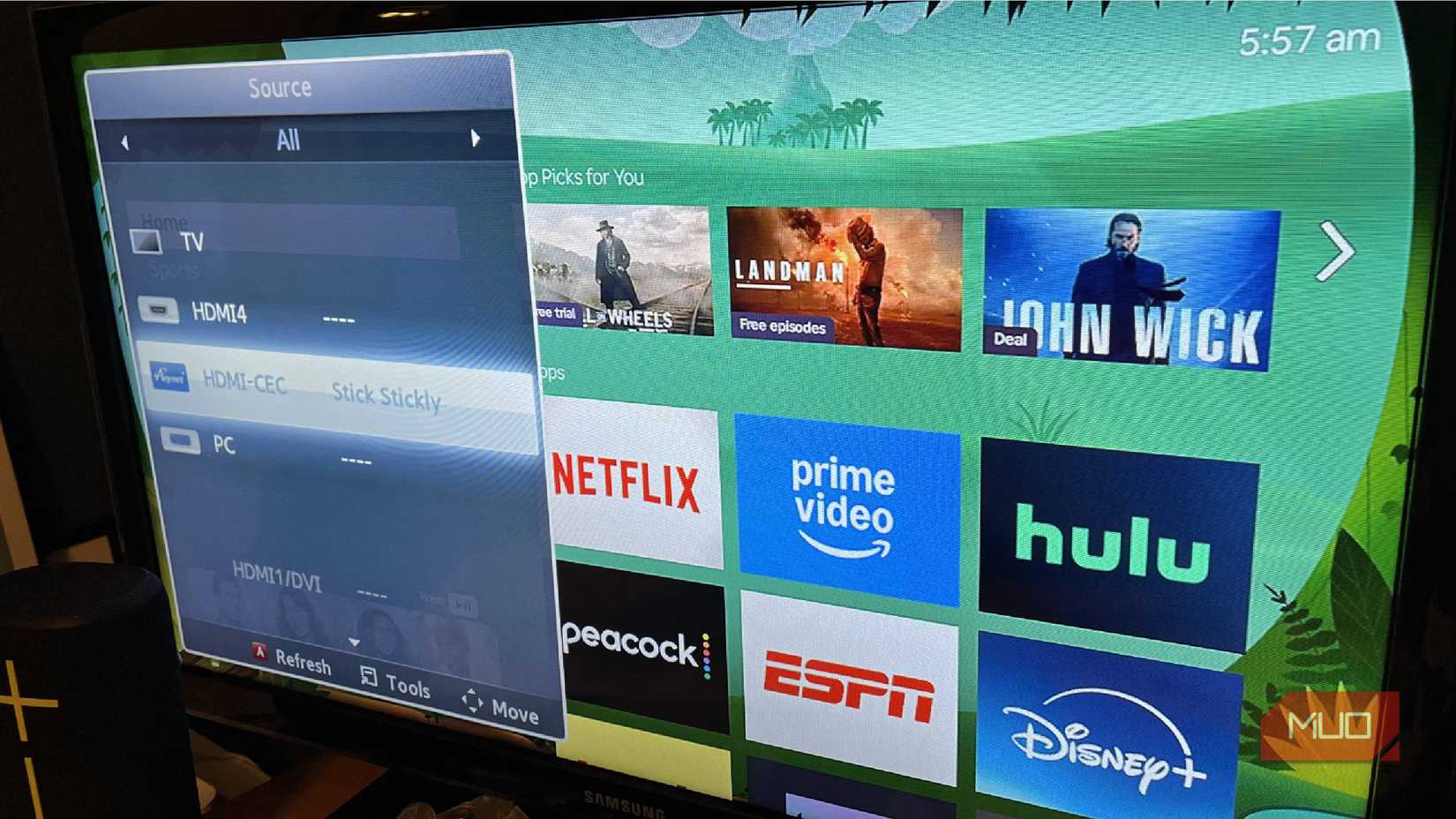

CEC is the reason your TV remote can sometimes power on your Blu-ray player or switch inputs automatically when you press play on a connected device. It’s a single-wire, bidirectional command bus riding on pin 13 of the HDMI connector, and it lets up to 15 connected devices talk to each other and be controlled from one remote.
Features like One Touch Play, which switches the TV to the correct input the moment a source device starts playing, and System Standby, which powers down every connected device at once, are both CEC commands travelling along with your video signal. Every manufacturer slaps its own brand name on this feature though, so Samsung might call it Anynet+, Sony calls it Bravia Sync, and LG calls it SimpLink, but underneath it’s the same open CEC protocol defined in the HDMI spec.
The Ethernet port hiding inside your HDMI cable
100 Mbit/s that almost nobody ever actually used
Fewer people know about this, but HDMI 1.4 introduced the HDMI Ethernet Channel, or HEC, which turns your HDMI cable into a 100 Mbit/s network cable between two devices. It shares a physical wire pair with ARC, using a protocol called Capability Discovery and Control to figure out whether both connected devices support Ethernet, then activating the channel if that’s the case.
The idea is to let a single HDMI cable also share an internet connection between a TV and a set-top box or receiver, cutting down on the tangle of network cables behind your TV or console. HEC didn’t quite get picked up in the mainstream the way ARC did, and you won’t find it implemented in as many consumer devices, but the capability can be rather useful and has been part of the spec since 2009.
The handshake that happens before you see a single pixel
EDID tells your laptop what the display can actually do
Before HDMI starts streaming any video, it exchanges a stream of background data that has nothing to do with the picture itself. This happens over the Display Data Channel, a small side connection defined by the same VESA standard used in older VGA and DVI setups. This lets a source and connected display swap Extended Display Identification Data, or EDID.
That EDID handshake is how your laptop knows a monitor’s exact supported resolution, refresh rate, color depth, and HDR capability before it renders an image. It’s constantly running in the background any time you plug in a new display.
The encryption check nobody notices until it fails
HDCP decides whether your 4K stream plays at all
HDMI also runs an encryption negotiation over the cable through high-bandwidth Digital Content Protection, or HDCP, which authenticates devices and encrypts the data path so premium content can’t be intercepted mid-transmission. This isn’t audio or video content itself, but a constant exchange of keys and authentication data between source and display that determines whether protected 4K or HDR content will even play.
It’s an invisible layer that runs before and throughout any actual video transfer, and it’s a large part of why HDMI handshake errors are such a common troubleshooting issue. Regardless, it’s the only thing standing between someone using a capture card to pirate protected video content and copyrighted footage over HDMI.
In HDCP 2.2 and later, the transmitter verifies that the receiving device is authorized, performs a locality check, and exchanges session-key information before protected content is sent. A TV, receiver, splitter, capture card, or adaptor may all pass a plain desktop image perfectly, but fail as soon as a protected 4K stream starts. The cable isn’t just delivering a signal; it’s also helping enforce a trusted chain between every device in the setup.
Video is the visible fraction of what the cable does
HDMI earned its reputation by replacing the mess of old video connectors, but its real achievement is how much it combines into one familiar cable. It can return lossless audio from a TV to a sound system, relay power and playback commands between devices, theoretically share Ethernet connectivity, exchange display capabilities, and run the security checks required for protected media.
These background channels explain both HDMI’s convenience and its occasional weirdness. A single cable can simplify an entire entertainment center, but it also has to coordinate several devices, protocols, and expectations at once. The next time an HDMI connection works flawlessly, remember that the picture is only the most visible part of the job.
